Duplicate a company in AX 2012

Import duplicate company data to use for testing [AX 2012]

 I am going to explain the steps that worked for me.

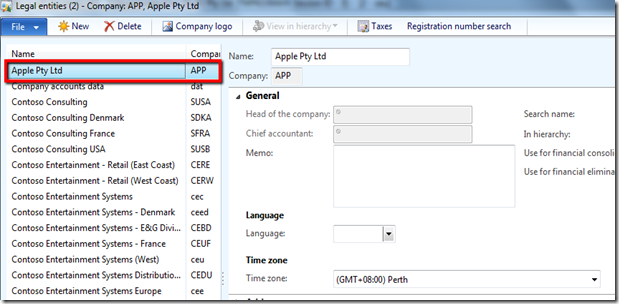

1. Create your new Legal entity

2. Set up the Ledger form which is a shared table. I selected the same account structures as the company I was copying from.

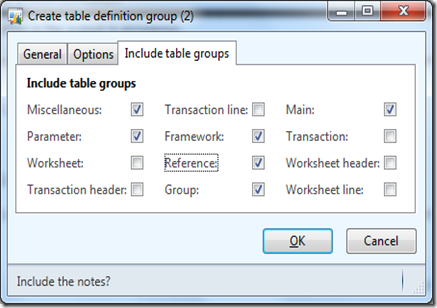

3. Create a definition group to export the data from main source company. If I didnt want master data such as customers, vendors etc. I would untick Main group.

Included shared tables in my export.

Now export your dat/def.

4. Now I imported without shared tables.

5. The result is good. Chart of accounts and posting profiles all work fine. Vendors, customers imported fine (note: the vendor uses the same partyId as the source company).

How to get Sales Orders created by Current User only in AX

static void GetCurrentUsrRecord(Args _args)
{
             SalesTable  salesTable;
             while select * from salesTable where salesTable.createdBy ==  curUserId()
             info (strfmt("%1",salesTable.SalesId));
}

How to print an Item with its Size, Color and Configuration in AX 2009

//Just copy below code and paste in your Job.

static void PrintItemWithConfigSizeColor(Args _args)
{
    InventTrans         _inventTrans;
    InventDim           _inventDim;
    ;

    while select * from _inventTrans join  _inventDim group by _inventTrans.ItemId ,_inventDim.InventColorID, _inventDim.InventSizeId,_inventDim.configId
                                                               where _inventDim.inventDimId == _inventTrans.inventDimId
        {
            print _inventTrans.ItemId;
            print _inventDim.InventColorId;
            print _inventDim.InventSizeId;
            print _inventDim.configId;
            Pause;
         }
}

Currency Setup in Dynamics AX 2009

Currency Setup in Dynamics AX 2009

Good Day!

Today we will be looking at Currency Setup in Dynamics AX 2009. Our agenda will be to learn following things:

1. Create currencies in Dynamics AX
2. Currency setup in General Ledger module
3. Setting company default currency

OK, now let’s start.

Create currencies in Dynamics AX

To create currency go to General Ledger > Setup > Exchange Rates. The Exchange rates form opens.

Exchange rates form

As you can see in above screen shot we have five tabs on this form. First is the Overview tab. In this tab we’ll create new currency. To create new currency press Ctrl + N, in the Currency field write new currency short name (3 characters limit), in the Name field write descriptive name for new currency, in the ISO field select ISO currency code for new currency and in the Symbol field enter symbol for new currency created.

In the lower pane of the Exchange rates form, are the exchange rates for currency. You can define exchange rates for each day. If you want to use one exchange rate leave the Start date field blank. AX will automatically use last exchange rate, if multiple exchange rates are available.

Next is the General tab which shows same information as in the Overview tab except the Gender field (Optional if you are not using Spanish check).

Third tab is the Currency convertor tab. Enable currency conversion by check mark on the Conversionfield. Postfix and prefix are character you want to add before and after amount. Enter spaces before and after postfix and prefix fields to separate from amount.

I have created the Pakistan Rupees (PKR) with the following setup:

Exchange rates form, Currency converter tab

Now I want to view all my amounts in the PRK currency. To do this click the current currency icon located in the bottom right corner of the status bar.

Currency converter

The Currency converter form opens. Double click on the PKR currency.

After doing above setting we will get the following result in the Chart of Accounts form.

Chart of accounts form

The Posting tab define Realized loss, Realized profit, Unrealized loss, Unrealized profit general ledger accounts due to currency exchange rate.

Exchange rates form, Posting tab

These settings depend on your company policies and weather you are using foreign currency for billing and payments. There’s a detail article about Realized and Unrealized profit and loss.

Last tab is the Round-off tab as the name shows it’s about rounding off currency.

Exchange rates form, Round-off tab

General rounding-off applies to all modules and there are separate settings for Account Receivable,Account Payables modules and Prices.

Example: We have amount 6827.28. Below table describe how Round Off and Rounding form works.

Rounding form	Round off .01	Round off .10	Round off 1.00	Round off 10.00	Round off 100.00
Normal	6827.28	6827.20	6827.00	6830.00	6800.00
Upward	6827.28	6827.30	6828.00	6830.00	6800.00
Downward	6827.28	6827.20	6827.00	6820.00	6800.00

Currency setup in General Ledger module

In General Ledger module go to Setup > Parameters. The General ledger parameters form opens. Go to the Ledger tab:

General ledger parameters form

In the Express exchange rate field specify how much of your currency equals to 100 units of foreign currency. The value is used in the Exchange rates form.

Example: Enter the 50 in the Express exchange rate field. Save parameters. The Exchange rates form will have the following values.

Exchange rates form

The Maximum penny difference field contains the maximum difference between debit and credit amount in the voucher. The difference can appear when debit or credit amount is rounded (because debit and credit amount is rounded separately).

The Maximum penny-rounding in the secondary currency field contains the maximum difference between debit and credit amount in the voucher if this amount is recorded in the secondary currency.

Setting up company default currency

To set company default currency do the following:

Go to the Basic > Setup > Company information > Other tab > Currency field group > Currency field

You can select any currency you have created in the Exchange rates form.

That’s all for now.

Good Bye!

AX2012 Create SSRS Report using Data Provides Classes

Create the SSRS Report in AX2012 using Report Data Provider (RDP) functionality.

RDP implments the standard MVC(Model View Controller) design pattern.
In this post I am building one report which is used in the production packing list report for production module.

What is MVC?

• Model-view-controller (MVC) is a pattern used to isolate business logic from the user interface.
• Model: Responsible for retrieving data and for business logic, this can included queries, data methods, or other classes that are designed toretrieve data.
• View: Responsible for the User Interface, this can also be thought of as the design for the report.
• Controller: Orchestrates the flow between Model and View

For this Report I am creating the Query,Contract,Controller,DataProvider classes in below.
In this I used lot of my custom fields that we created and used in the functionality

I am extending this functionality with adding builder class to the contract and adding the logic to lookup the data for the contract parmmethods.

for this I am writing the class which extending the SysOperationAutomaticUIBuilder.


TmpTable- ProdPackingSlipDetailsTmp
Query Name-ProdPackList
Contract class-ProdPacklistContract
Controller class-ProdPackListController Extends SRSReportRunController
Data ProvideClass-ProdPacklistDP Extends SRSReportDataProvidePreProcess
SSRS Report-ProdPackList

Starting with Query-Build the Query as the following data sources with the fields and relations.



Create the TMP table as below fields and properties of the table

define Properties of the table mainly createTransactionID=Yes
















Create the Contract  Class first,
This class is used to create parm methods for the reports, So if you have any parameters that you want to pass to report then create parm methods for those as datamembers.

for ex.-

[    DataMemberAttribute('UseQuantity')]
public ProdBOMJournalQty parmUseQuantity(ProdBOMJournalQty _useQuantity = useQuantity)
{
    useQuantity = _useQuantity;
    return useQuantity;
}


In my report I am using Query and adding two parm fields.
I am adding the contract processing through my builder with the following attribute of my contract class.

[DataContractAttribute,
SysOperationContractProcessingAttribute(classstr(ProdPackListUIBuilder)) ]
public class ProdPacklistContract
{
SalesId salesId;
LineNum lineNum
}

[    DataMemberAttribute('SalesId')]
public SalesId parmSalesId(SalesId _salesId=salesId)
{
salesId=_salesId;
return salesId;
}

[ DataMemberAttribute('LineNum')]
public LineNum parmLineNum(LineNum _lineNum=LineNum)
{
 lineNum=_lineNum;
return lineNum;
}

Create Controller class which extends SrsReportRunController

/// <summary>
///    The <c>ProdPackListController</c> class is the controller class for <c>ProdPackList</c> SSRS report.
/// </summary>
public class ProdPackListController extends SrsReportRunController
{
}
Create the Main method where you have to define the reportname and design and this was the method which will calls the report to exectue...starting point of the report.

public static void main(Args _args)
{
    SrsReportRunController    controller = new  ProdPackListController  ();
    controller.parmReportName("ProdPackList.Report");
    controller.parmArgs(_args);
    controller.startOperation();
}



Override the method preRunModifyContract method


protected void preRunModifyContract()
{
    GNProdPacklistContract    contract;
    contract = this.parmReportContract().parmRdpContract() as GNProdPacklistContract;
}


if you want to handle the record count and no records then you can over ride this method and you can handle the no records warnings.
protected container preRunValidate()

{
    // This report is only containing dynamic filters and via testing it's been determined
    // that on warm box it performs under 10 seconds with a 500 records and under 10 minutes
    // with 50000 records. The rest of the contract parameters just define layout and UI, so
    // no additional filtering on those needs to be done in this method.
    // The granularity of the query is determined by the join of ProdJournalBOM and ProdBOM tables.
    #define.ErrorLimit(50000)
    #define.WarningLimit(500)

    container               validateResult;
    Query                   firstQuery = this.getFirstQuery();
    int                     rowCount = QueryRun::getQueryRowCount(firstQuery, #ErrorLimit + 1);

    if (rowCount > #ErrorLimit)
    {
        validateResult = [SrsReportPreRunState::Error];
    }
    else if (rowCount > #WarningLimit)
    {
        validateResult = [SrsReportPreRunState::Warning];
    }
    else if(rowCount <=0)
    {
       // validateResult = [SrsReportPreRunState::Error];
         throw error("No records available for the Selected criteria");
    }
    else
    {
        validateResult = super();
    }

    return validateResult;
}


if you want to pass the values for the report before promting to user for input you can override this method
prePromptModifyContract

In my case I am overriding to pass the value and ranges for my query before showing the dialog to user.


/// <summary>
///    Sets query ranges based on the caller.
/// </summary>
/// <exception cref="M:Exception::Error">
///    The method is called from a invalid path.
/// </exception>
protected void prePromptModifyContract()
{
    QueryBuildRange         queryBuildRangeSerial;
    QueryBuildRange         queryBuildRangeProd,qbrTransStatus;

    QueryBuildDataSource    queryBuildDataSource,queryBuildDataSource1,queryBuildDataSource2;
    ProdTable               localProdTable;
    Query                   query;
    // get the report query
    query                   = this.parmReportContract().parmQueryContracts().lookup(this.getFirstQueryContractKey());

    queryBuildDataSource    = SysQuery::findOrCreateDataSource(query, tableNum(ProdTable));
    queryBuildDataSource1   = SysQuery::findOrCreateDataSource(query, tableNum(InventDim));
    queryBuildDataSource2   = SysQuery::findOrCreateDataSource(query, tableNum(InventTrans));

    queryBuildRangeProd     = SysQuery::findOrCreateRange(queryBuildDataSource, fieldNum(ProdTable,ProdId));
    queryBuildRangeSerial   = SysQuery::findOrCreateRange(queryBuildDataSource1, fieldNum(InventDim,inventSerialId));
    qbrTransStatus          = SysQuery::findOrCreateRange(queryBuildDataSource2, fieldNum(InventTrans,StatusReceipt));
    qbrTransStatus.value(queryValue(StatusReceipt::Received));

    if (this.parmArgs().dataset() ==  tableNum(ProdTable))
    {
        localProdTable = this.parmArgs().record();
        queryBuildRangeProd.value(queryValue(localProdTable.ProdId));
        this.parmShowDialog(true);
    }
    else if ((this.parmArgs().menuItemName() == menuitemOutputStr(ProdPacklist)) && (this.parmArgs().dataset() ==0))
    {
        this.parmShowDialog(true);
    }
    else
    {
        throw error(strFmt("Packing list can only printed from Production",funcName()));
    }

}


Create DataProvider class which extends SrsReportDataProviderPreProcess
In My report I am using the Barcode setup functionality for printing the serial numbers aswell.

[

    SRSReportQueryAttribute(queryStr(ProdPackList)),

    SRSReportParameterAttribute(classStr(ProdPacklistContract))

]

class ProdPacklistDP extends SrsReportDataProviderPreProcess
{

    boolean                     showQuery;


    boolean                     firstPage;
    ProdTable                   prodTable;
    ProdId                      prodId;

    CompanyInfo                 companyInfo;

    ProdBOM                     prodBOM;
    InventDim                   inventDim;

   ProdPackingSlipDetailsTmp prodPackingSlipDetailsTmp;
    BarcodeSetup                barCodeSetup;
    BarcodeSetupId  barcodeSetupId;
    Barcode         barcode;
}


Create the method which return the tmp table object

[

    SRSReportDataSetAttribute(tableStr('ProdPackingSlipDetailsTmp'))

]

public ProdPackingSlipDetailsTmp getProdPacklistDetailsTmp()
{
    select prodPackingSlipDetailsTmp;
    return prodPackingSlipDetailsTmp;
}

override the method ProcessReport where you will write the business logic to fill into thetmp table

/// <summary>

///    Processes the report business logic.

/// </summary>

/// <remarks>

///    Calls the sub methods to insert data into the temporary table.

/// </remarks>

[SysEntryPointAttribute(false)]

public void processReport()

{

    QueryRun                queryRun;
     ProdPacklistContract contract       = this.parmDataContract() as  ProdPacklistContract ;
    // Set the userconnection to use on table.
    // This is required to ensure that createdTransactionId of inserted record is different than default
           transaction.
    prodPackingSlipDetailsTmp.setConnection(this.parmUserConnection());
    this.init();
    this.setupBarcode();
    queryRun                        = new QueryRun(this.parmQuery());
    while (queryRun.next())
    {
        prodTable       = queryRun.get(tableNum(ProdTable));
        inventDim       = queryRun.get(tableNum(InventDim));
        prodId          = prodTable.ProdId;
        if(prodTable.InventRefType==InventRefType::Sales)
        {
           this.insertHeader();
           this.insertDetails(prodId,inventDim.inventSerialId);
        }
    }
}


private void init()
{
    companyInfo = CompanyInfo::find();
    firstPage   = true;
}

//BP Deviation documented

protected BarCodeString barcode(str _SerialNumber)
{
    str jobId = strupr(_SerialNumber);

    if (barcodeSetup.validateBarcode(jobId))
    {
        barcode.string(true, jobId);
        barcode.encode();
    }
    else
    {
        throw(error(strfmt("@SYS41409", barcode.barcodeType(), jobId)));
    }
    return barcode.barcodeStr();
}


/// <summary>
/// Initialize barcode settings.
/// </summary>
protected void setupBarcode()
{
    barcodeSetupId = JmgParameters::find().getBarcodeSetupId();
    barcodeSetup = BarcodeSetup::find(barcodeSetupId);
    barcode = barcodeSetup.barcode();
}

// assigns the data into header information first

private void insertHeader()
{
    prodPackingSlipDetailsTmp.clear();
    prodPackingSlipDetailsTmp.initValue();
    prodPackingSlipDetailsTmp.SalesId=prodTable.InventRefId;
    prodPackingSlipDetailsTmp.SerialNumber=inventDim.inventSerialId;


    prodPackingSlipDetailsTmp.ProdItemId                = prodTable.ItemId;
    prodPackingSlipDetailsTmp.Description               = prodTable.Name;
    prodPackingSlipDetailsTmp.Customer                  = SalesTable::find(prodPackingSlipDetailsTmp.SalesId).CustAccount;


    prodPackingSlipDetailsTmp.initValue();
    prodPackingSlipDetailsTmp.barcodeSetupId=barCodeSetup.barcodeSetupId;
    prodPackingSlipDetailsTmp.barcodeType=barCodeSetup.barcodeType;
    prodPackingSlipDetailsTmp.fontName=barCodeSetup.fontName;
    prodPackingSlipDetailsTmp.fontSize=barCodeSetup.fontSize;
    prodPackingSlipDetailsTmp.maximumLength=barCodeSetup.maximumLength;
    prodPackingSlipDetailsTmp.minimumLength=barCodeSetup.minimumLength;
    prodPackingSlipDetailsTmp.SerialNumberBarCode=this.barcode(inventDim.inventSerialId);
}


private void insertDetails(ProdId _prodId,InventSerialId _inventSerialId)
{
    SMAServiceObjectTable smaServiceObjectTable;
    SMAServiceBOMTable    smaServiceBOMTable;
    ProdBOM               prodBOMTable;

    while select prodBOMTable order by InventTransId asc
        where prodBOMTable.ProdId==_prodId
    {
        if(InventTable::Find(prodBOMTable.ItemId).PrintItemProduction)
        {
            prodPackingSlipDetailsTmp.ItemId=prodBOMTable.ItemId;
            prodPackingSlipDetailsTmp.Qty=prodBOMTable.BOMQty;
            prodPackingSlipDetailsTmp.Name=prodBOMTable.itemName();
            if(prodBOMTable.SerialnoControlled())
            {
                select TemplateBOMId,ServiceObjectId from smaServiceObjectTable
                    where smaServiceObjectTable.InventSerialId==_inventSerialId
                    && smaServiceObjectTable.ReferenceId==_prodId
                    && smaServiceObjectTable.ReferenceCategory==InventTransType::Production
                join InventSerialId from smaServiceBOMTable where
                    smaServiceBOMTable.ItemId==prodBOMTable.ItemId
                    && smaServiceBOMTable.ObjectId==smaServiceObjectTable.ServiceObjectId
                    && smaServiceBOMTable.ServiceBOMId==smaServiceObjectTable.TemplateBOMId;

                prodPackingSlipDetailsTmp.SerialNo=smaServiceBOMTable.InventSerialId;
            }
            prodPackingSlipDetailsTmp.SalesFormNotes=FormLetterRemarks::find(companyInfo.LanguageId,FormTextType::ProductionPackingList).Txt;
            prodPackingSlipDetailsTmp.insert();
            prodPackingSlipDetailsTmp.SerialNo="";
        }
    }
}

Builder class

public class ProdPackListUIBuilder extends SysOperationAutomaticUIBuilder

        {

            DialogField dialogSalesId;

            DialogField dialogSalesLine;

            SalesId  salesId;

            LineNum  lineNum;

            ProdPacklistContract prodPacklistContract;

            ProdPackListController packListcontroller;

            QueryRun queryRun;

            Query baseQuery;

            ProdTable prodTable;

        }

       public void build()

        {

            FormBuildGroupControl grp;



            Dialog      dialogLocal = this.dialog();

            ;

            prodPacklistContract = this.dataContractObject();

            if(this.validateCaller())

            {

                dialogLocal.addGroup("Sales");

                this.addDialogField(methodStr(ProdPacklistContract,parmSalesId), prodPacklistContract);

                this.addDialogField(methodStr(ProdPacklistContract,parmSalesLine), prodPacklistContract);

            }

       }

        public SysOperationController controller()

        {

            SysOperationController ret;

            ret = super();

            packListcontroller=ret;

            return ret;

        }

        private str getFirstQuery()

        {

              // this will just return the first contract key in the Map

            Map queryContracts =packListcontroller.parmReportContract().parmQueryContracts();

            MapEnumerator mapEnum;

            str firstQueryKey;

            if(queryContracts)

            {

                mapEnum = queryContracts.getEnumerator();

                if(mapEnum.moveNext())

                {

                    firstQueryKey = mapEnum.currentKey();

                }

            }

            return firstQueryKey;

        }

        public void getFromDialog()

        {

            prodPacklistContract = this.dataContractObject();

            if(this.validateCaller())

            {

                salesId=dialogSalesId.value();

                LineNum=dialogSalesLine.value();

                this.validateData(salesId,LineNum);

            }

            super();

        }

        public void initializeFields()

        {

            prodPacklistContract = this.dataContractObject();

        }

        private void initquery()

        {

baseQuery=packListcontroller.parmReportContract().parmQueryContracts().lookup(this.getFirstQuery());

            QueryRun=new QueryRun(baseQuery);

            while (queryRun.next())

            {

                prodTable=queryRun.get(tableNum(ProdTable));

                if(prodTable)

                    break;

            }

        }

        public void lookupSalesId(FormStringControl _control)

        {

            Query query = new Query();

            SysTableLookup sysTablelookup;

            sysTablelookup =SysTableLookup::newParameters(tableNum(SalesTable),_control);

            sysTablelookup.addLookupfield(fieldNum(SalesTable,SalesId));

            sysTablelookup.addLookupfield(fieldnum(SalesTable,CustAccount));

            sysTablelookup.addLookupMethod(tableMethodStr(SalesTable,customerName));



            query.addDataSource(tableNum(SalesTable));

            if(ProdTable.InventRefType==InventRefType::Sales)

            {

                query.dataSourceTable(tableNum(SalesTable)).addRange(fieldNum(SalesTable, SalesId)).value(queryValue(ProdTable.InventRefId));

            }

            sysTablelookup.parmQuery(query);

            sysTablelookup.performFormLookup();

        }

        public void lookupSalesLine(FormStringControl _control)

        {

            Query query = new Query();

            SysTableLookup sysTablelookup;

            sysTablelookup =SysTableLookup::newParameters(tableNum(SalesLine),_control);

            sysTablelookup.addLookupfield(fieldnum(SalesLine,LineNum));

            sysTablelookup.addLookupfield(fieldnum(SalesLine,Itemid));

            sysTablelookup.addLookupfield(fieldNum(SalesLine,SalesId));

            query.addDataSource(tableNum(SalesLine));

            query.dataSourceTable(tableNum(SalesLine)).addRange(fieldNum(SalesLine, SalesId)).value(dialogSalesId.value());

            query.dataSourceTable(tableNum(SalesLine)).addRange(fieldNum(SalesLine, ItemId)).value(queryValue(prodTable.ItemId));

            if(prodTable.InventRefType==InventRefType::Sales)

            {

                query.dataSourceTable(tableNum(SalesLine)).addRange(fieldNum(SalesLine, InventtransId)).value(queryValue(prodTable.InventRefTransId));

            }



            sysTablelookup.parmQuery(query);

            sysTablelookup.performFormLookup();

        }

//Override the postbuild function to bind the lookups for the fields.

        public void postBuild()

        {

            super();

            if(this.validateCaller())

            {

                prodPacklistContract=this.dataContractObject();

                this.initquery();

                // From binding info, get the dialog field for racecode attribute and add button

                dialogSalesId = this.bindInfo().getDialogField(

                                     this.dataContractObject(),

                                     methodStr(ProdPacklistContract,parmSalesId));

                if (dialogSalesId)

                {

                    dialogSalesId.lookupButton(2);

                }

                dialogSalesId.value(" ");



                // register override method for lookup cust Group

                dialogSalesId.registerOverrideMethod(methodStr(FormStringControl, lookup), methodStr(ProdPackListUIBuilder, lookupSalesId), this);

                // register override method for modified

                dialogSalesId.registerOverrideMethod(methodStr(FormStringControl, modified), methodStr(ProdPackListUIBuilder, SalesIdModified), this);



                //binding info for customer drop down

                dialogSalesLine = this.bindInfo().getDialogField(this.dataContractObject(),

                                     methodStr(ProdPacklistContract,parmSalesLine));

                dialogSalesLine.value(" ");

                // register override method for lookup customer

                dialogSalesLine.registerOverrideMethod(methodStr(FormStringControl, lookup), methodStr(ProdPackListUIBuilder, lookupSalesLine), this);



                if (dialogSalesLine)

                {

                    dialogSalesLine.lookupButton(2);

                }

                if(ProdTable.InventRefType==InventRefType::Sales)

                {

                    dialogSalesId.value(prodTable.InventRefId);

                    dialogSalesLine.value(SalesLine::findInventTransId(prodTable.InventRefTransId).LineNum);

                    prodPacklistContract.parmSalesId(prodTable.InventRefId);

                    prodPacklistContract.parmSalesLine(SalesLine::findInventTransId(prodTable.InventRefTransId).LineNum);

                    dialogSalesId.enabled(false);

                    dialogSalesLine.enabled(false);

                }

                if(prodTable.RecId==0)

                {

                    throw error(strFmt("please select valid production order"));

                }

            }

            else

            {

                    prodPacklistContract.parmSalesId("");

           }

        }

// if the salesId is modified we have to load the sales lines

        public boolean SalesIdModified(FormStringControl _control)

        {

            dialogSalesId.value(_control.valueStr());

            dialogSalesLine.value('');

            return true;

        }

        private boolean validateCaller()

        {

            if((packListcontroller.parmArgs().menuItemName() == menuitemOutputStr(ProdPacklist)) && (packListcontroller.parmArgs().dataset() ==0))

                return false;

            else

                return true;

        }

        private void validateData(SalesId _salesId,LineNum _lineNum)

        {

            boolean ret=true;

            SalesLine salesLine;

            if(this.validateCaller())

            {

                    if(_salesId=="")

                        throw error(strFmt("this production is not linked to sales %1",prodTable.ProdId));



                    if(_lineNum==0)

                        throw error(strFmt("this production is not linked to sales %1 ",_salesId,prodTable.ProdId));

                    if(ret)

                    {

                        salesLine= SalesLine::find(_salesId,_lineNum);

                        if(salesLine && salesline.ItemId != prodTable.ItemId)

                        {

                            throw error(strFmt("this production is not linked to sales %1 ,%2",salesLine.ItemId,prodTable.ItemId));

                        }

                    }

            }

        }



 This was the new functionality for the adding the lookups for the fields using builder class.

After creation of all the classes above mentioned then we have to create the report,
Open .netDevelopment enviorment and create project and select Microsoft Dynamics AX from the Left pane and select the ReportModel Project from the list of project and give your project name and click ok.

select the project and right click and click add and select report.

It will create the new report as follow.Right click on report and select properties and give the name as ProdPackList.

Select DataSets and right click and click AddDataset and provide the DatasetName and select the dataset that you created and right click and properties.

click on Query it will opens the dialog with the DataProvider classes,in that select the DataProvider class that we built and click next. It will opens the fields selection window where we will select the list of fields that required to show in the report

based on your requirements you can select or deselect the fields and click on. Now the dataset with the fields are ready for the report.
Now you can drag and drop that dataset on to the designs node, It will generate auomatic design for those fields.
If you want to design your own format then create new precision Design by right click on the designnode and  add precisionDesign and change that design name as we mentioned in the controller class main method(Report).

I Created the Precision design as follows.

This is how my report looks like above.
